CONSTRUCTION SPECIALTIES - EXPANSION JOINT COVERS

1010 WESTCOTT VENTURE PARK
WESTCOTT
AYLESBURY
BUCKINGHAMSHIRE HP18 0XB

Tel: 01296 652800
Fax: 01296 652888

Company Logo
www.c-sgroup.co.uk

Suppliers of: Expansion joint plates, expansion joint sections, floor joint covers, structural joint covers, movement joint covers, movement joint profiles, joint covers & plates, fire barriers for expansion joints

Construction Specialties (UK) Ltd is the leading manufacturer of specialist building products for the healthcare, education, commercial, retail, leisure and industrial sectors. The company works closely with architects, interior designers, contactors and end users, offering comprehensive project support and in-house installation service.

CS product ranges include wall protection, impact resistant doors, entrance matting, performance coatings, expansion joint covers, cubicle curtain track, solar shading systems, natural ventilation louvres and explosion venting.

CS Allway® Expansion Joint Covers

Construction Specialties manufacture a comprehensive range of expansion joint covers to accommodate most types of building movement. To complement a wide offering of joint covers for floors, walls and ceilings in a choice of styles and finishes, the product range also includes speciality covers for car parks, roofs and exterior walls, to offer a solution for any part of the building.

Gasketed Expansion Joint Covers

  • Floor, wall and ceiling applications
  • Continuous aluminium frames and flush design thermoplastic rubber gasket
  • Gaskets available in 4 colours
  • Suitable for hygiene sensitive and wet areas
  • Models to suit joint widths from 20mm to 150mm as standard
  • Heavy duty options available
  • Surface and recess mounted options

Metal Expansion Joint Covers

  • Co-ordinated models for floor, wall and ceiling
  • Continuous extruded aluminium side frames and centre plates
  • Models to suit joint widths from 10mm to 150mm as standard
  • Horizontal movements up to +/- 100% of the joint width can be accommodated
  • Heavy duty options available

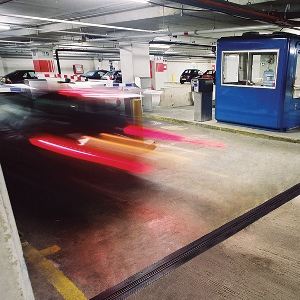

Car Park and Stadia Joint Covers and Seals

  • Models to suit joint widths from 25mm to 250mm as standard
  • Metal and EPDM options available
  • Bonded only option
  • Suitable for interior & exterior use

Cover Strips, Plates & Plugs

  • Simple and economical joint cover options
  • Easy to install
  • Rigid aluminium strips & cover plates and flexible synthetic rubber options

Accessories to suit Expansion Joint Covers

  • Fire Barrier Systems
  • Models to suit floor and wall joints up to 500mm
  • 1-hour and 2-hour ratings
  • Fire tested to BS 476:Part 20 and 22: 1987 or Underwriters Laboratories (UL-2079) certified
  • Moisture Barriers for installation beneath the expansion joint cover to help prevent moisture ingress from above and below.
  • Acoustic Barriers to reduce the transmission of airborne noise.

Other Products Available from Construction Specialties:

CONSTRUCTION SPECIALTIES - ENTRANCE MATTING

CONSTRUCTION SPECIALTIES - EXPLOSION VENTING

CONSTRUCTION SPECIALTIES - LOUVRES

CONSTRUCTION SPECIALTIES - SOLAR SHADING

CONSTRUCTION SPECIALTIES - WALL PROTECTION

CONSTRUCTION SPECIALTIES - WALLGLAZE



CAR PARK Expansion Movement Joint Covers
CEILING EXPANSION MOVEMENT JOINT COVERS
CEILING EXPANSION MOVEMENT JOINT SYSTEMS
CONSTRUCTION JOINT Gaskets
CONTRACTION JOINT Sections Aluminium/Cellular Foam
CONTRACTION JOINT Sections Cellular Foam
CONTRACTION JOINT Sections Floor
COVER STRIPS Expansion Movement Joint Cover Profiles
EXPANSION MOVEMENT JOINTS
EXPANSION MOVEMENT JOINTS Beads
EXPANSION MOVEMENT JOINTS Covers
EXPANSION MOVEMENT JOINTS Covers Decorative
EXPANSION MOVEMENT JOINTS Fillers
EXPANSION MOVEMENT JOINTS Fillers Preformed
EXPANSION MOVEMENT JOINTS Fillers PSA Standard Spec Airfield Pavement
EXPANSION MOVEMENT JOINTS Foam
EXPANSION MOVEMENT JOINTS Moisture Barriers Drainage System
EXPANSION MOVEMENT JOINTS Moisture Barriers Membranes
EXPANSION MOVEMENT JOINTS Profiles
EXPANSION MOVEMENT JOINTS Sealing Gaskets
EXPANSION MOVEMENT JOINTS Sections Profiles
EXPANSION MOVEMENT JOINTS Sections Profiles Aluminium
EXPANSION MOVEMENT JOINTS Sections Profiles Aluminium PVC
EXPANSION MOVEMENT JOINTS Sections Profiles Aluminium Synthetic Rubber
EXPANSION MOVEMENT JOINTS Sections Profiles Brass
EXPANSION MOVEMENT JOINTS Sections Profiles Brass PVC
EXPANSION MOVEMENT JOINTS Sections Profiles Brass Synthetic Rubber
EXPANSION MOVEMENT JOINTS Sections Profiles Copper Synthetic Rubber
EXPANSION MOVEMENT JOINTS Sections Profiles for Bridges / Mechanical Bridge Joints
EXPANSION MOVEMENT JOINTS Sections Profiles for Car Parks
EXPANSION MOVEMENT JOINTS Sections Profiles for Ceilings
EXPANSION MOVEMENT JOINTS Sections Profiles for Decking Car Park Floors Service Areas
EXPANSION MOVEMENT JOINTS Sections Profiles for Engineering Applications
EXPANSION MOVEMENT JOINTS Sections Profiles for Flooring
EXPANSION MOVEMENT JOINTS Sections Profiles for Heavy Duty Loading Applications
EXPANSION MOVEMENT JOINTS Sections Profiles for Tiles
EXPANSION MOVEMENT JOINTS Sections Profiles for Walling
EXPANSION MOVEMENT JOINTS Sections Profiles Metal
EXPANSION MOVEMENT JOINTS Sections Profiles PVC
EXPANSION MOVEMENT JOINTS Sections Profiles PVC-u Rigid PVC
EXPANSION MOVEMENT JOINTS Sections Profiles Stainless Steel
EXPANSION MOVEMENT JOINTS Sections Profiles Watertight Waterproof
EXPANSION MOVEMENT JOINTS Sections Profiles Zinc Synthetic Rubber
EXPANSION MOVEMENT JOINTS Strips:
EXPANSION MOVEMENT JOINTS Strips: Fire Barrier
EXPANSION MOVEMENT JOINTS Strips: Fire Barrier Intumescent
EXPANSION MOVEMENT JOINTS Strips: for Metal Gutters
EXPANSION MOVEMENT JOINTS Ties
FIRE BARRIERS Expansion Movement Joint
FIRE SEALS Expansion Movement Joint
FIRE SEALS Movement Joint
FLOOR JOINTS
FLOOR JOINTS Expansion Movement Joint Covers
FLOOR JOINTS Expansion Movement Joint Covers Flush Fitting
FLOOR JOINTS Expansion Movement Joint Covers Heavy Duty
FLOOR JOINTS Expansion Movement Joint Covers Surface Fitting
FLOOR JOINTS Expansion Movement Joint Systems
FLOOR JOINTS Expansion Movement Joint Systems Perimeter
FLOOR JOINTS Joint Sealing Gaskets
FLOOR SCREED Movement Joints
FLOOR TRIMS Separation Joint
INTUMESCENT GAP SEALS Structural Movement Joints
INTUMESCENT MOVEMENT JOINTS Gap Seal
JOINT SEALING GASKETS
JOINT SEALING GASKETS Passivhaus Certified
JOINT SEALING PROFILES
JOINT SEALING PROFILES Water Swellable
JOINT SEALING STRIPS .
JOINT SEALING STRIPS Custom Sizes
JOINT SEALING STRIPS Lap Joints
JOINT SEALING STRIPS Passivhaus Certified
JOINT SEALING STRIPS Tunnel Linings
JOINT SEALING SYSTEMS
ROOF Expansion Movement Joint Covers Flat Roofs
SEALANTS Mastic: by Special Function: Parking Decks
STADIUM EXPANSION MOVEMENT JOINT COVERS
WALL JOINTS
WALL JOINTS Expansion Movement Joint Covers Cover Profiles
WALL JOINTS Expansion Movement Joint Systems
WALL JOINTS Movement Joint Perimeter Systems
WALL TIES Expansion Joint
WEATHERSTRIPPING Expansion Movement Joints
ALL METAL Expansion Joint Covers
ALLWAY Expansion Joint Covers
APF Expansion Joint Covers
JOINTOFEU Fire Barriers
MULTIFLEX Fire Barrier
REFLEX Fire Barrier
RESTOFIT Expansion Joint Covers
THINLINE Expansion Joint Covers
TWINLINE Expansion Joint Covers

Expansion Joint Cover - The Mall Maidstone – Kent, UK

January 2020

The Mall Maidstone has recently undergone a £6 million refurbishment which took 5 months to complete and mainly took place at night. Improvements include intelligent strip lighting which adjusts to the weather, white porcelain flooring and heightened shop fronts.

As part of the refurbishment works, CS supplied the GTP-300HD expansion joint cover, a heavy duty, recess mounted, flush floor cover, ideal for applications like this with intensive traffic across the joint. This robust joint cover will ensure the shopping centre can move safely and without damaging itself for years to come.

APF expansion joint cover - UNIQLO Clothing Stores

January 2020

UNIQLO is a clothing apparel company, which was originally founded in Yamaguchi, Japan in 1949 as a textiles manufacturer. Now it is a global brand with over 1000 stores around the world. Redefining clothing, with a focus on quality and textiles which has been unwavered since the company’s origins in 1949.

The popular APF expansion joint cover from Construction Specialties has been installed in two Australian UNIQLO Clothing Stores, one in Hornsby and one in Chatswood.

The APF features a unique interlocking cover design which allows for a significant horizontal movement in the floor slab (upto +40/-20mm) as well as accommodating vertical displacement (upto ±15mm). One of the key benefits of this expansion joint cover is that there are no visible screws, it looks clean and simple and is ideal for busy retail environments with high pedestrian traffic and heavy rolling equipment with a 1000kg point load capability.

Two different APF models were chosen based on the joint widths at each store, the APF-50 was installed at UNIQLO Hornsby and the APF-25 was used for UNIQLO Chatswood.
