BILCO UK LTD
PAVILION 7, FORNHAM BUSINESS CENTRE
HALL FARM, FORNHAM ST MARTIN
BURY ST EDMUNDS
SUFFOLK IP31 1SL
Tel: 01284 701696
Fax: 01284 702531
Suppliers of: access doors floor access doors roof access hatches roof access hatches roof fire vents roof smoke vents automatic roof smoke vents bs 7346 roof smoke vents bs 558 smoke vents en 12101
Bilco UK Ltd Supply a range of roof access hatches, smoke vents, floor doors, floor access covers, fall protection products and commercial escape & access ladders.
Based in Suffolk, Bilco can supply the construction trade with a range of standard roof hatches, smoke vents, and floor doors in various sizes and materials direct from stock, delivered by a nationwide pallet-line system or dedicated consignment. Bespoke items can also be undertaken with the assistance of our technical team.
NSHEV (Natural Smoke & Heat Exhaust Ventilators)
CE Marking: Bilco UK complies with all CE Marking legislation. See our website for our declaration of conformity.
Useful Resources:
- Bilco Assist: Use Bilco assist to identify the essential design considerations required to ensure safe access points onto flat roof areas
- BIM Models: Click Here
- NBS Specifications: Click Here
- CAD Drawings: Click Here
- Installation Videos: Click Here
- Find out more about the RIBA Accredited CPD: Safe Access All Areas Click Here
- View the Howe Green entry on BPi: Click Here
Bilco supply the following ranges:

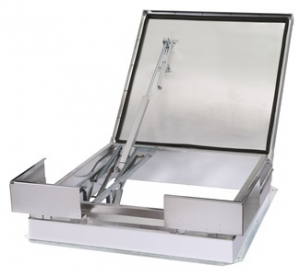

Roof Access Hatches:
Roof access hatches provide access to the roof areas for routine maintenance and inspection as well as for servicing of HVAC systems and other roof mounted equipment. They are ideally suited for use in office buildings, flats, factories, warehouses, retail stores, shopping complexes, hotels, manufacturing plants, hospitals, schools, auditoria and sports facilities where roof access is a requirement.
Natural Smoke & Heat Exhaust Ventilators (NSHEV) - CE Marking Compliant:
Natural smoke vents help vent smoke and gases from burning buildings primarily to provide clearer means of escape for individuals within the building. They also aid firefighting visibility when entering the building to fight the fire and reduce the lateral spread of the fire. Used widely in stairwells, corridors, smoke shafts and on roof areas of factories, warehouses, auditoria and retail facilities. CE Marked Compliant.
Bilco natural smoke and heat exhaust ventilators are manufactured to comply with all the latest regulations including the Construction Products Regulation 305/2011. All standard vents are supplied CE marked and with a Declaration of Conformity and are manufactured to meet the demands of Building Regulations, Approved Document B, BS9999 and EN12101-2.
Safety Products:
Bilco can also supply a range of Safety Products to offer fall protection and safety in accessing roof and floor areas. Bilco can also supply intruder protection systems to safeguard against trespass.
Ladders / Step Over Ladders / Roof Mounted Walkways:
Bilco supply a comprehensive range of ladder and walkways for roof access. These include Fixed Vertical Ladders (with or without Safety Cages & Guardrails), retractable ladders and loft ladders; as well as a reange of roof mounted walkways to provide safe access to rooftops.
Floor Access Doors and Howe Green Access Covers:
Our range of floor access solutions includes through-floor doors and the industry standard for accessing underfloor services - Howe Green floor access covers.
Further technical information is available to download from the BPi download Library
Bilco UK - Choosing the right roof access hatch and ladder for your project?
Whether you are working on a commercial or residential project, there are a number of factors that must be addressed when deciding on a roof access hatch and accompanying ladder to ensure its safe and compliant application for the entire lifecycle of the building.
Here Tony Stevens, Technical Estimator at Bilco UK, explores the main areas that should be taken into consideration.
Purpose for access
BILCO Service Stair with Type L-50TB Roof Hatch copyWhether for the education, healthcare, leisure or commercial sectors, roof access hatches are required to provide permanent and secure access to the roof area. In order to make sure you’re choosing the correct system to meet your project’s unique requirements, you must first identify the main reason for requiring access to the roof.
Is it purely for maintenance reasons? Or will a safe means of access also be required for the regular installation or removal of equipment from the roof?
Here you should also identify what tools and equipment will need to be transferred through the access hatch, or whether it will just be the individual that is conducting the necessary work.
Frequency and product specification
Once you have established your reason for requiring safe access to the roof, you will then be able to make an informed choice regarding which roof access hatch and corresponding ladder system is best suited to meet the needs of your project.
The first considerations that must be addressed when specifying a ladder to gain roof access is where the ladder will be mounted and the requirement of any additional safety elements to ensure the continued safety of the individual when using the system. If a ladder is to be mounted externally to gain access to a roof, it must be fitted with a safety cage and guard rail to ensure safe and secure access.
Bilco S-50T Roof Access Hatch installed at Brentwood Community HospitalFor a small roof access hatch, such as the Bilco E-50TB, which has internal dimensions of 915mm x 915mm, a fixed vertical ladder should be chosen. This type of ladder is also the most suitable option for projects where space is limited.
In this instance, a retractable ladder would not be recommended, as the ladder angle would hinder easy access as an individual moved closer to the hatch. However, retractable ladders are ideal for use in areas including schools and hospitals where the roof hatch is larger, at around 1500 mm in size and the floor area must be kept clear at all times.
To ensure easy and safe access, a minimum head clearance of 120mm is required, whilst the maximum single climb should be no more than three metres, in accordance with BS4211-7.2.
If access to the roof is required on a regular basis for professionals that will have to transfer tools and equipment through the hatch, a Fixed Staircase Roof Access Hatch, also known as a Service Stair Roof Access Hatch, should be specified with a Companionway Ladder or a Fixed Staircase. The companionway ladder is a 75 degree angled, rigid ladder, which provides permanent access to a roof hatch of up to 2440mm.
It should here be noted that the roof hatch must be sufficient to maintain a head clearance of 2000mm, as detailed in Building Regulations Part K.
When specifying a retractable ladder, it is essential that you know the height of the space between the ceiling and the roof, more commonly known as the roof void. This is to ensure the ladder box liner will fit inside the space once retracted. Calculating the height of the floor to the underside of the roof access hatch should also be done at the initial stages to ensure the ladder isn’t too short or long.
Regardless of the size of the roof access hatch, the system should be operated easily and safely with one hand, in accordance with the requirements outlined within the Manual Handling Regulations, enabling the individual to maintain three points of contact with the fixed ladder.
During the installation process, the ladder must be positioned opposite the hinge to ensure safe and unobstructed access.
Bespoke requirements
To ensure the criteria is successfully met, consideration should be given to the wider options available for both the roof access hatch and corresponding ladder.
ladder-wcage-video-screenshot copyFor example, ladders that are supplied with relevant fire ratings and available with vertical backboards that include steps and a handrail for enhanced safety and security should also be considered to meet relevant building regulations.
Increased access opening sizes or double leaf configurations should also be explored where access is required for larger items of equipment or tools. Motorised options also allow the individual to safely maintain contact with the ladder when entering or exiting the hatch.
Regardless of the project type, all installations should be subject to individual Risk Assessments. Comprehensive training should also be provided for all professionals, supported by Method Statements regarding safe and correct use of the access solutions installed.
For further information on Bilco UK’s complete range of roof access solutions, visit www.bilcouk.co.uk or call 01284 701696.
For advice on how to specify the correct ladder, visit: www.bilcouk.co.uk/news/specifying-ladders
For further information on specifying the right roof access hatch for your upcoming project, download Bilco UK’s free guide:
www.bilcouk.co.uk/files/downloads/choosing-the-right-access-hatch-bilco.pdf
Bilco UK - Design dominates the Riverside Museum, Glasgow
Housing the Glasgow Museum of Transport, one of the UK’s foremost transport and technology collections, the Riverside Museum reflects Glasgow’s historic role as a centre of shipbuilding, train manufacturing and engineering.
Previously located in a former tram depot on the Glasgow South Side, the Transport Museum’s exhibits have moved to The Riverside Museum, designed by renowned architect, Zaha Hadid.
The museum’s iconic and beautiful design dominates its riverside location, whilst paying homage to the heritage of its surroundings. Crucial to the museum’s flowing design is its roof, which curves and undulates and continues around the east and west sides of the
building to constitute the majority of the external structure.
Silver‐grey zinc panels complete the effect, placing the building firmly in the context of the River Clyde. As part of the roof construction, Bilco UK was commissioned to manufacture and supply a E‐50TB Roof Access Hatch, in addition to two ESW‐50REM Smoke Vents, to
meet strict requirements for convenient access and building safety regulations.
Both the roof access hatch and smoke vents were custom‐designed to unique specifications by Bilco UK’s in house team and clad in zinc to create a seamless, aesthetic finish with the museum’s distinctive roof.
Expertly engineered to meet the requirements of Manual Handling Regulations, the E‐50TB Roof Access Hatch allows for regular and convenient maintenance by facilitating easy one handed operation.
The Access Hatch will enable engineers with small tools to safely access the roof to conduct essential maintenance, whilst its overlapping cover design, fully welded corners and insulated cover ensure both weather tightness and energy efficiency to deliver
the highest standards of longevity for the museum.
Specified to ensure strict adherence with relevant fire safety regulations, the two ESW‐50REM Smoke Vents open to 140 degrees in the event of a fire within 60 seconds, guaranteeing the highest standards in fire safety and allowing for the venting of smoke, heat and noxious gases in the event of a fire.
Mark Baird, Sales Operations Manager at Bilco UK, said: “Knowing that Bilco UK’s products are part of such a unique and ambitious project, especially one which is so architecturally significant, is incredibly rewarding. The Riverside Museum is a great example of how taking a bespoke approach to roof access solutions can achieve unparalleled aesthetics, without compromising on convenience or safety.
“Not only do our custom‐made access hatches and smoke vents integrate seamlessly into the overall design, they also offer the highest possible standards of fire safety and efficiency.”
Open to Glasgow to the North and the Clyde to the South, the museum’s interior is complex, inviting visitors to snake their way around the various exhibits. The building “flows from city to waterfront, symbolising the dynamic relationship between Glasgow and the
ship‐building, seafaring and industrial legacy of the river Clyde.” (Zaha Hadid).
