Magply Manufacture a range of Euroclass A1 Non-Combustible Boards.
Magply Boards have the following benefits:
- Environmentally Friendly
- Mould Resistant
- Breathable
- Euroclass A1 Performance
- Strong and Easy to use
- Moisture Protection
Applications for Magply boards:

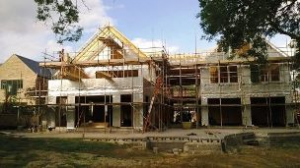

Timber Frame:
As a high performance, multi-functional board, Magply features a Magnesium Oxide formulation, to offer a fire-safe and environmentally friendly alternative to conventional plywood or OSB products in Timber Frame Construction where the project is in close proximity to another property. Additionally, the unique production process of Magply keeps the chloride content to just 0.01%, enhancing both stability and long-term durability.
Crucially, Magply carries internationally recognised accreditations confirming the boards’ ability to deliver 90 minutes integrity and insulation under test conditions, furthermore Magply offers excellent racking strength, impact or pull-out resistance and all round ease of use in a variety of applications.
Magply has been tested under BS EN 476 Part 22 for timber frame applications and parts 6&7 to provide Class 0 certification for the surface spread of flames together with other approvals such as EN ISO 1182-2010.

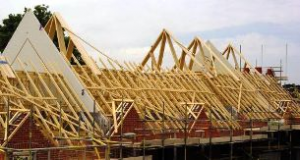

Spandrel Panels:
9mm Magply provides a fire-safe, lightweight environmentally friendly solution for Spandrel Panels. As a high performance, multi-functional board, Magply features a Magnesium Oxide formulation and is manufactured from a production process that ensures a very low chloride content enhancing both stability and durability. Magply is tested for use in spandrel panel applications utilising one 9mm board on each side of a uninsulated spandrel frame to BS 476 (Part 22)1987.
Tilebacker Boards:
Magply Tilebacker is a mineral based, homogeneous, environmentally friendly product with a manufacturing process that produces very little in the way of C02 emissions, unlike cement particle and gypsum boards which both generate high levels of C02. Magply Tilebacker Boards help to provide a safe and healthy living environment whilst being a great surface to tile onto.
Modular & Leisure Build:
Off-site Manufacturing for schools, student accommodation, Hospitals and the Leisure Industry is becoming ever more popular in modern day construction. The Magply Euroclass A1 board can be used in Off-Site Manufacturing as a fire mitigation sheathing board for Timber Frame, Steel Frame & Sip Panels. Magply provides a fire-safe, lightweight environmentally friendly solution for OSM and as a high performance, multi-functional board, Magply features a Magnesium Oxide formulation which is manufactured from a production process that ensures a very low chloride content enhancing both stability and durability. Crucially, Magply carries internationally recognised accreditations confirming the boards’ ability to deliver fire integrity and excellent racking strength, impact or pull-out resistance and all round ease of use in a variety of off-site.

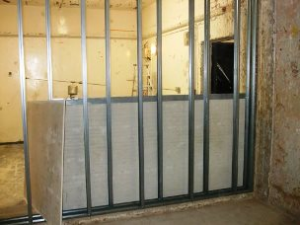

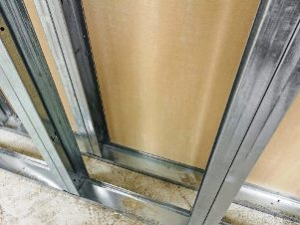

Steel Frame Partition Boards:
Magply provides a fire-safe, lightweight environmentally friendly solution for dry-lining. As a high performance, multi-functional board, Magply features a Magnesium Oxide formulation and is manufactured from a production process that ensures a very low chloride content enhancing both stability and durability. Crucially, Magply carries internationally recognised accreditations confirming the boards’ ability to deliver 90 minutes fire integrity and 69 minutes insulation under test conditions. Furthermore Magply offers excellent racking strength, impact or pull-out resistance and all round ease of use in a variety of applications. Magply has been tested under BS EN 1364-1:2015 Steel Frame Partition.
Roofing Boards:
Magply recovery and protection boards have been developed to meet the roofing industry needs for a cost effective, lightweight and fireproof board that will provide an inert and stable separating layer for all types of waterproofing overlay applications. Magply can also be used as a tough, durable and reusable protection layer over completed installations. 9mm Magply provides a fire-safe, lightweight environmentally friendly solution for Spandrel Panels.
Dry Lining Boards:
Magply is ideally placed for Dry-Lining specifications that require quick installation, less weight, breathability and fire protection and boards are manufactured 1200mm x 2400mm in 6,9,12 and 18mm, bespoke sizes are available on request. As a high performance, multi-functional board Magply features a Magnesium formulation to offer a fire-rated environmentally friendly board for the highest quality dry lining.
Rainscreen Cladding Panels:
As a high performance, multi-functional board Magply features a Magnesium formulation to offer a fire-rated environmentally friendly board for rainscreen cladding. Additionally the unique production process of Magply keeps the Chloride content to just 0.01% enhancing both stability and long term durability. Magply provides A1 performance in rainscreen cladding applications and has been tested in accordance to EN 13501 Class A1 Non-Combustible inline with the Building Control Alliance Technical note 18 ‘use of Combustible Cladding Materials on residential buildings paragraph 12.7 of AD B2 – use materials of limited combustibility throughout the cladding system.
Further technical information is available to download from the BPi download Library or from the Manufacturer’s own website.
Magply Boards Cover Superfast Steel Framing System
A cutting edge residential project in Essex is making use of Magply boards for both the internal lining and exterior cladding treatment to an innovative lightweight steel framing system, demonstrating the widely specified fire resistant products multiple attributes.
The four bedroom new-build and extensions to a neighbouring existing property are being carried out by SP&J Construction, in a joint venture with Uni-Frame and the ARG Group. The intention is to use the current project as a show-site for the rapid build MMC solution and the wide choice of finishes which will be available to future purchasers.
Impressively, the main two-storey structure was erected on a prepared base in just five days, while work is progressing well in terms of the fit-out and external finishes to what will be a spacious home. While in respect to this project, the UniFrame system includes diagonal ties which are tensioned on site, Magply is often used by timber frame manufacturers to take the racking loads for their buildings as well as to provide fire protection in close proximity to other properties.
Externally the Magply boards are being covered with a vapour barrier and a 100 mm layer of high performance foam insulation. On top of this, at first floor level, a resin based render system is being applied, featuring a base coat, reinforcement mesh, and two more layers: including the finish coat which is available in some 3,000 different colour options. Around the ground floor of the house, brick slips are being applied over the base coat of render using adhesive and then pointed in the style of conventional masonry.
This multi-functional performance results from a Magnesium Sulphate formulation which also offers an environmentally friendly alternative to conventional plywood or OSB products. Additionally, the unique production process keeps the chloride content to just 0.01%, enhancing both stability and long term durability.
MAGPLY A1 BOARDS SHEATH HYBRID ELEMENTS TO MODULAR HOTEL BUILD IN KENT
MAGPLY A1 BOARDS SHEATH HYBRID ELEMENTS TO MODULAR HOTEL BUILD IN KENT
The development of a 140 bed Hampton by Hilton Hotel in Ashford, Kent, is featuring the use of Magply A1 Euroclass non-combustible boards for sheathing vertical and horizontal sections around the six-storey modular volumetric structure, offering excellent strength and durability as well as Class O fire resistance and good acoustic properties. The project is being undertaken by Ashford based main contractor, Rees Mellish, while Bowman Riley was the architectural consultancy which gained the final planning consent and supervised work on site.
The high performance Magply boards from IPP were supplied by the local branch of Jewson builders’ merchants. In order to optimise the build programme as well as the use of factory manufactured bedroom and other modular units, the final design made use of in-situ reinforced concrete elements as well as steel and timber framing for the parapet wall at roof level, both of which have been sheathed using Magply boards.
Bowman Riley’s Associate responsible for the project: Roy Wilson, commented: “When we were brought in we revisited the planning application and gained consent for an extra storey, before completing the detailed design: including the cladding solution. The client has carried out a number of value engineering exercises, leading to the use of traditional reinforced concrete infill between some of the modules, in order to reduce the number of different types across the project and then again at high level around the parapet there is steel framing.”
.MAGPLY48
The Project Manager for Rees Mellish, Mark Herridge , explained: “For the areas where the reinforced concrete frame separates the modules we needed a fire resistant board and therefore asked Jewson’s sales manager to recommend one. Fortunately, they had the Magply 12mm boards in stock which met all of the requirements and which our installers have found easy to cut and fix. As well as the vertical bands at several locations around the elevations, the boards are also used to cover the parapet wall which steps out just below the roof. It is secured to the steel and timberwork infill, while the ‘helping hand’ brackets for the cladding are then secured back through the boards. It’s a good product overall.”
Magply MgO boards, available in 9mm,12mm & 20mm thickness, it presents a fire-safe and environmentally friendly alternative to conventional plywood or OSB products. Additionally, the unique production process minimises chloride content, enhancing both stability and long-term durability. The different thicknesses of panel are also widely used as a substrate board for the direct application of proprietary render systems, as well as for flooring and flat or pitched roof build-ups.
