AQUARIAN CLADDING SYSTEMS LTD
22 HILL ROAD
CLEVEDON
NORTH SOMERSET BS21 7NZ
Tel: 0808 223 9080
Fax: 0844 755 0289
Suppliers of: Brick Cladding System, Terracotta Cladding System, Stone Cladding System, Insulating Cladding System, brickslips, brick slips, insulated brick cladding
Based in North Somerset since 2007, Aquarian Cladding Systems Ltd has a wealth of experience distributing brick, stone and Terracotta cladding systems, Rainscreens and Sunscreens throughout the UK.
Working with architects, contractors, volumetric modular suppliers, developers & installation specialists, our cladding systems have been used on buildings across a wide range of sectors, from residential to retail, in both the public and private sector. Consequently we are able to demonstrate that our cladding systems such as Gebrik are cost-effective and durable throughout the lifetime of a building.
Whether your method of construction is refurbishment or new-build, our prefabricated systems typically provide insulation, weather protection and durability with the benefit of being fully tested and certified, eg to BBA, BRE and CWCT standards.
To ensure we fully understand the drivers for our clients’ decisions we regularly attend conferences, network with industry experts and subscribe to numerous communications. We therefore understand current issues such as Priority Schools Building Programme, Green Deal, ECO, BREEAM, Code for Sustainable Homes, RE:FIT, Modern Methods of Construction, Zero Carbon and many more.
BIM compliance: Aquarian is developing BIM capabilities and can provide models on request. Please contact us for further information.
Products

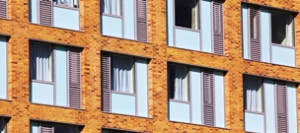

Gebrik Insulating Brick Cladding System
Gebrik consists of approx 700 different natural clay brick slips, in a range of sizes, cast in polyurethane under factory-controlled conditions.
Non load-bearing, lightweight stretcher, stack or flemish bond panels are produced to create approx 1m² ‘sheets’ which can be screwed directly to either masonry, timber or steel framesubstrates on site.
With a full range of factory-produced or site-applied components to suit external corners, surrounds to window or door openings and any other abutments, the system can cater for most architectural designs.

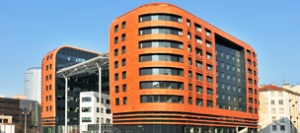

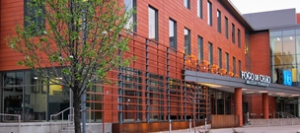

Terracotta Rainscreens
Aquarian offer a wide range of Terracotta Rainscreens including the following systems:
- Piterak® Slim is a large format terracotta cladding system with overlapping horizontal joints. It is installed with clips fixed on vertical profiles. used with the V-Clip® system from LABEL Façade, it is officially approved for vertical installation. Piterak® Slim is tough, rated Q4 for impact resistance, and can be used at ground level even in public spaces.

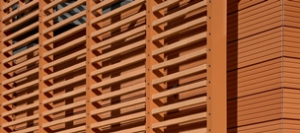

Sunscreens
Aquarian offer a wide range of Sunscreens including the following systems:
- Autan® Square is a small sunscreen with square shape very economical. Its versatility adds to all the others advantages of terracotta baguettes to implement sun protection projects, screening or wall cladding in a playful format, which offers a wide range of architectural choices at affordable prices.
- Autan® Round is a small sunscreen with round shape very economical. Its versatility adds to all the others advantages of terracotta baguettes to implement sun protection projects, screening or wall cladding in a playful format, which offers a wide range of architectural choices at affordable prices.
- Harmattan® is economical and original thanks to its ovoid shape end small length that allow original architecture like pixel effects. It can be use to implement sun protection projects, screening or wall cladding in a playful format, which offers a wide range of architectural choices at affordable prices.
- Shamal® is a sunscreen shaped like an airplane wing. It is available with an exclusive fastening system that includes a support profile. It provides highly effective sunlight protection and thermal insulation for buildings. The inclination angle and spacing of elements are subject to the architectural choices. It is available in 2 standard dimensions : 14 or 20 cm.
Useful Resources:
- CAD Drawings available on request - Click here
- Brick Slip Selector tool - Click here
- Certification & Compliance - Click here
Further technical information, image galleries and product specifications are available through the Aquarian Cladding Systems website or via the BPi Download Library.
Aquarian Cladding solution provides modern touch for Townhouse project
Specialist external brick and terracotta cladding systems supplier Aquarian Cladding Systems has provided a perfect modern construction solution on the historic Dulwich Estate in South London.
Designed by Syte Architects and built by Aspect Construction for specialist developer Lightbox, Edward Milner Terrace is a collection of five-storey townhouses built using modern building techniques and laden with smart tech features.
With strong emphasis on the Georgian and mid-century aesthetic of the area, the contemporary townhouses with were clad with the Gebrik Brick Cladding System, courtesy of Aquarian, combined with copper, zinc and large feature windows.
Originally, Lightbox specified another brick cladding system, but the fire at Grenfell Tower underlined the importance of only using correctly detailed solutions that were proven to be safe regardless of height. Neither the developer nor architect were satisfied with the information provided by the supplier, and so instead opted for the Gebrik solution, which had more robust and extensive fire test data, including five successful BR135 Classification Reports. Its performance was also supported by Aquarian’s responsive and professional technical service.
In addition, with a range of over 700 brick finishes to choose from, project architect Rob Whitlock was able to specify a cream handmade textured brick that met the sensitive planning requirements for a site that included 21 protected trees.
Matthew Horn of Lightbox explained: “We wanted a product that reflected our modern approach to construction and Aquarian offered the perfect solution of Gebrik, a modern building solution that suited the constraints of our steeply sloping, wooded site.
“We required an externally insulated cladding system that ensured we had maximum internal room sizes on our concrete structure, was quick to install and easy to use. The lightweight and compact nature of the product was also an important feature on our complex site.”
The thickness of the product worked extremely well for the scheme and as no cutting of the brick on reveals was required, there was a saving on time and money thanks to speedy installation. The Gebrik system could also be fixed directly into the concrete of the end units, which had exposed textured walls. With a U-value of 0.19W/m2K on a 328mm total wall thickness, SAP issues were also greatly reduced.
Aquarian were on hand with their technical expertise and support, and Matthew added: “A key driver in our shift from our original supplier was the responsiveness of the Aquarian team. Our architects were given the information they required to drive the project at concept stages, and it gave us confidence to see the project through in liaison with Aquarian.
“The Gebrik system has been easy to use, fast and cost effective, and the Aquarian team have been responsive and informative throughout.”
For Aquarian’s Sale’s Director Jazz Rigden, Edward Milner Terrace is yet another success story for Aquarian and Gebrik.
“The development is hugely impressive, and we’re delighted Lightbox found Gebrik to be the perfect solution at Edward Milner Terrace,” said Jazz.
“Our systems are tried and tested, and they guarantee simpler, faster builds that require little or no maintenance, performing precisely as they should.”
Aquarian Cladding, based in North Somerset, supplies brick and terracotta cladding systems to the UK construction industry across a wide range of sectors, from residential to commercial. For more information call 0808 223 9080.
Aquarian Cladding Systems joins CHSW Business Club
Aquarian Cladding Systems has joined Children’s Hospice South West’s (CHSW) Business Club to show its support for the charity in its 30th anniversary year – and is urging others to join with them.
The Clevedon-based brick and terracotta cladding systems supplier decided to join the CHSW Business Club with the aim of helping it to raise £30,000 in its special 30th year by recruiting 100 businesses, each paying £300 for their membership.
The range of benefits to joining include building connections, raising awareness of the business and, crucially, helping to make a difference.
Managing Director Paul Richards said: “Children’s Hospice South West has helped make a huge difference for local children with life-limiting illnesses and their families, and to reach the 30-year milestone is a fantastic achievement.
“As a company we have been a huge supporter of local worthwhile causes and encourage charity initiatives for staff every year. Charities struggled last year because the pandemic cancelled many fund-raising events, and this is a great way to help get the ball rolling again for 2021.
“We are also looking forward to connecting with other South West businesses and seeing what opportunities that may bring.”
Since the founding of the charity in 1991, CHSW now has three children’s hospices – Charlton Farm in Wraxall, Little Bridge House in North Devon, and Little Harbour in Cornwall. The hospice teams provide vital care to over 500 children with life-limiting illnesses and offer much-needed support to families.
If you are interested in finding out more about joining the CHSW Business Club visit www.chsw.org.uk/businessclub or call Amanda Gallagher, CHSW Corporate Fundraiser, on 01275 866 600.
